Please note we require an experienced cook to join MPSV around the 21st July in Montrose port Scotland.
Must have:
●Previous experience in cooking for over 50 pax various nationalities
●Speak good English
●Hold a BIOMETRIC passport
Salary: 3683.00USD
Contract duration 3 months

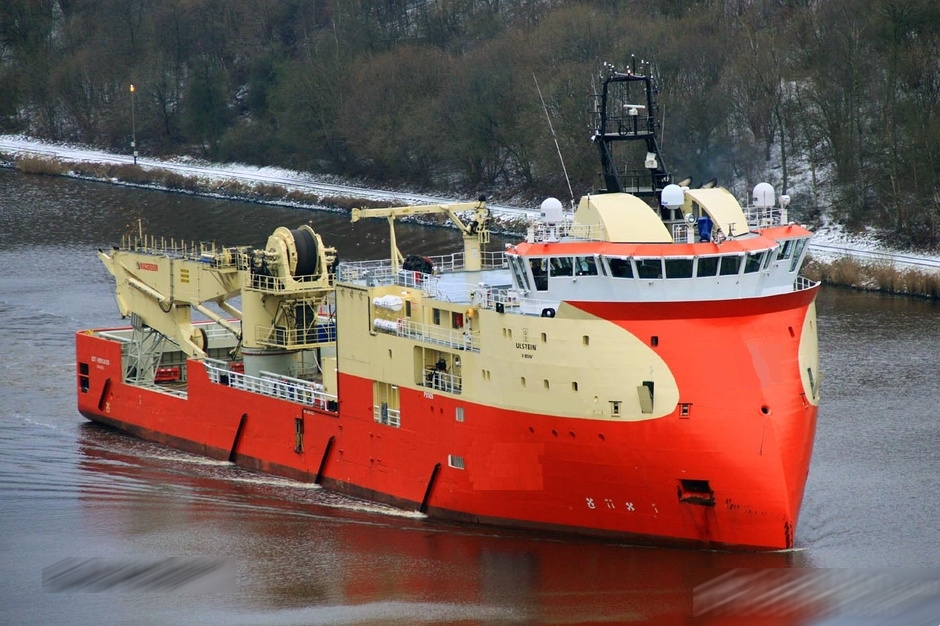

DESIGN DP II MULTI-PURPOSE SUPPORT VESSEL (MPSV)
BUILT 2014, CONSTRUCTIONES NAVALES DEL NORTE
FLAG CYPRUS
GENERAL INFORMATION
Classification DNV +1A1 ICE-C SPS SF LFL* COMF-V(3) E0 DYNPOS-AUTR NAUT-OSV(A) CLEAN DESIGN
DK(+) HL(2.8)
Operation World Wide
Endurance 45 days plus
Maximum Speed About 15 knots
DIMENSIONS
Gross Tonnage 4964
Net Tonnage 1490
Deadweight 3625.2 t
Length Overall 88.8 m
Breadth Moulded 19.0 m
Depth to Main Deck 8.0 m
Draft 6.6 m
Freeboard max draft 1.4 m
TANK CAPACITIES & DISCHARGE RATES
Marine Diesel 1076.4 mᶟ 2 pumps @ 50-250 mᶟ / hour each
Fresh Water 970 mᶟ 2 pumps @ 250 mᶟ / hour each
Ballast / Drill Water 1851.3 mᶟ
2 pumps @ 250 mᶟ / hour each
Liquid Mud 580.8 mᶟ
2 pumps @ 100 mᶟ / hour each
Brine (MEG) (SG 2.8) 470 mᶟ
2 pumps @ 75-125 mᶟ / hour each (Depending on Density)
Dry Bulk (6 tanks) 396.7 mᶟ
1 Duplex BHS Compressor Capacity 2 x 30 mᶟ / min @ 5.6 bar
LFL (4 tanks) 292.3 mᶟ
4 pumps @ 100 mᶟ / hour each
Base Oil 216 mᶟ
1 pump @ 150 mᶟ / hour
Foam 400 litres
DP SYSTEM
DP System Kongsberg K– POS DP-21
Notation Class II DNV Notation: DYNPOS (Autr)
Portable Joystick C-Joy Kongsberg
Differential GPS Reference systems
1 x Kongsberg DPS 132 + 1 x Kongsberg DPS 232 interfaced with Veripos LD5 x 2
DGPS
Laser Reference System 1 x Kongsberg CyScan
Radius Kongsberg Radius 1000
USBL
HiPAP Kongsberg 500
HiPAP Kongsberg 501
Taut Wire Bandak LTW MK15B
Gyros 3 x Anschutz Standard 22
SPC-OFF-07-7001-005 EDT Hercules Specifications Sheet
Revision 1.0
Issue Date: 25.04.2017
Document Owner: Chartering Manager
Uncontrolled when printed or not viewed as the controlled online version.
DECK EQUIPMENT
Deck Load 1430 t @ 10t/m2
Deck Area 608 m2 Clear Deck (38.00 m x 16.00 m)
Main Crane—fully AHC Main line — 70 t AHC @ 21.0 m (with 2000 m wire)
Whip line – 10 t AHC @ 34.0 m (400 m wire) (personnel lift)
Provision Crane 2 t @ 17 m
Tugger Winch 1 x 10 t pull
Capstan 2 x 10 t pull @ 25 m/min
ROV Hangars (2 x WROVs) 5.6 L x 8.9 B x 10.9 H (each)
PROPULSION & MACHINERY
Main Engines—Generators 4 x Wartsila 9L20
Main Propellers 2 x Schottel SCD 2020 Azimuth @ 2,500 kW each
Auxiliary Generators 2 x Cummins 300 ekW each
Emergency Generator 1 x Cummins 150 ekW
Bow Thrusters 1 x Brunvoll Tunnel @ 1,200 kW
1 x Brunvoll Retractable Azimuth @ 850 kW
Total Electrical Power 4 x 1580 ekW
NAVIGATION
Radars 2 x Sam Electronics (1 X S-Band + 1 x X-Band)
AIS Atlas – Debeg 3400
Gyro Compass 3 x Anschutz Standard 22
Track Pilot Sam Electronics 1100
Echosounder Furuno Navigational FE – 700
Speed Log Furuno DOPPLER LOG DS80
Chart Pilot Sam Electronics 1100
Doppler Log Furuno DS-80
ACCOMMODATION
Total Accommodation 71 bunks
Client Facilities Project office, Offline room, ROV Control room, client and conference room.
Other Facilities Mess room, recreation rooms (2), changing room, gym and sauna.
Incinerator Installed
COMMUNICATION
Primary V-sat — K-Band (adaptable to client requirements)
Secondary Iridium Open Port
GMDSS As Per GMDSS A1, A2 and A3
