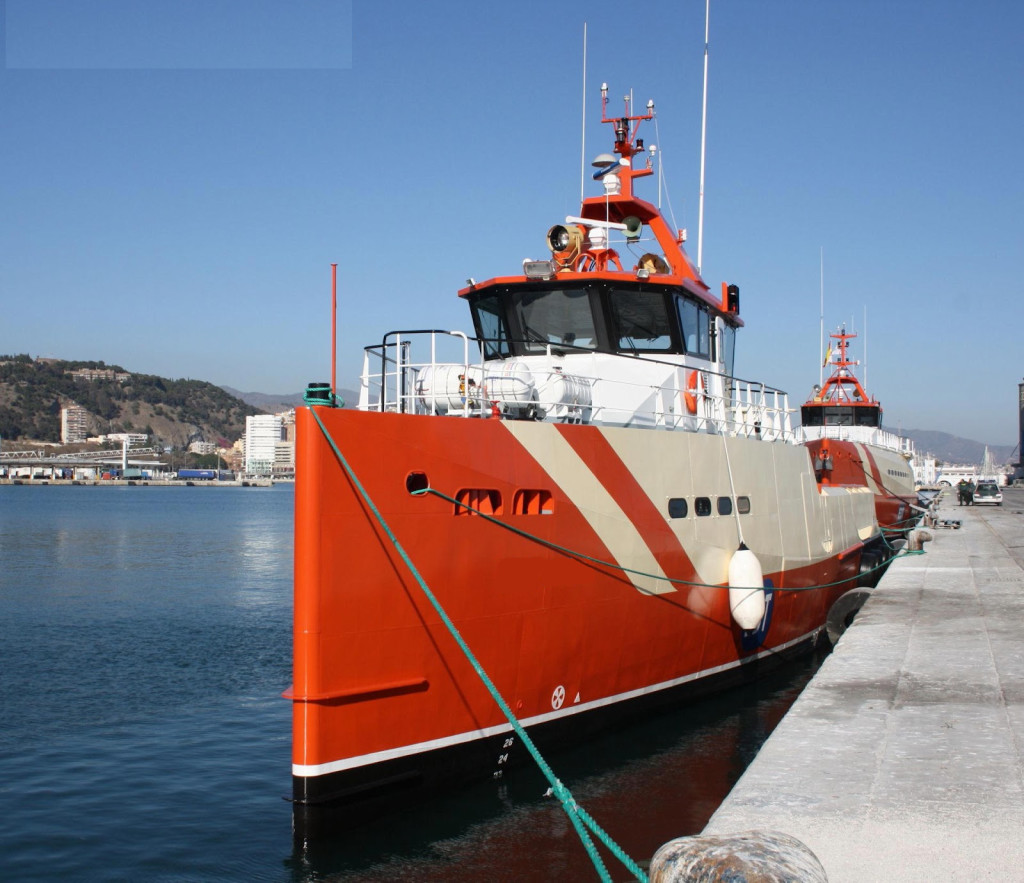

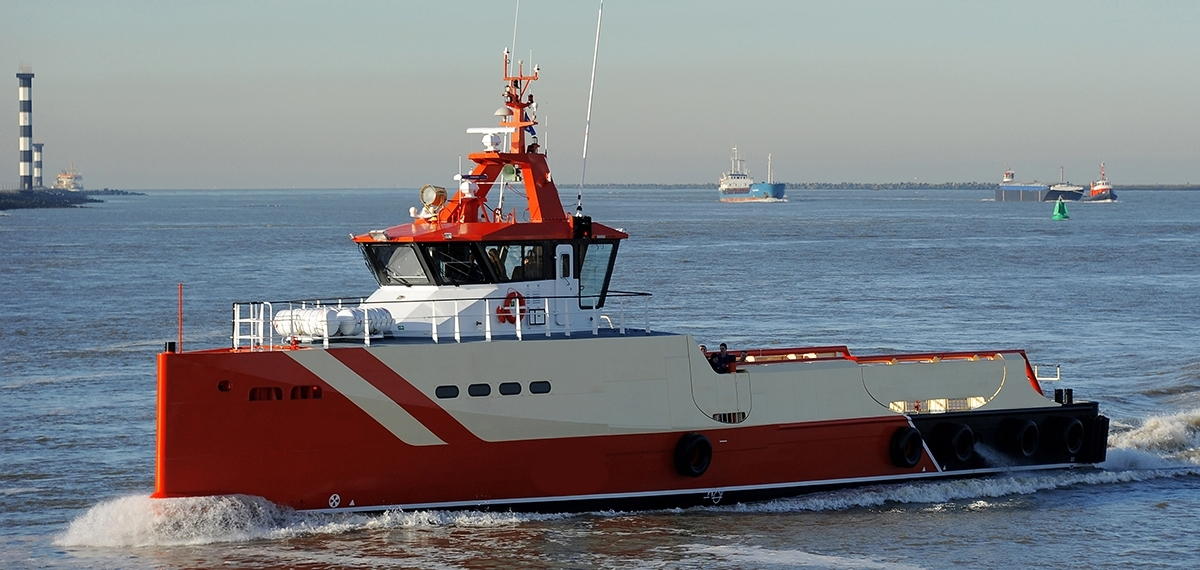

DESIGN FAST CREW / SUPPLY VESSEL
BUILT 2012, DAMEN SHIPYARDS, GORINCHEM , THE NETHERLANDS
FLAG CYPRUS
GENERAL INFORMATION
Classification BV / I + HULL-MACH, Crew Boat, SP56, Sea Area 3, Green Passport
Operation Worldwide
Maximum Speed About 26 knots
Economic Speed About 15 knots
DIMENSIONS
Gross Tonnage 174 t
Net Tonnage 52 t
Deadweight 83.2 t
Length Overall 35.92 m
Breadth 7.35 m
Depth to Main Deck 3.3 m
Draft 2.6 m FWD / 2.2 m AFT
Freeboard Max Draft 1.36 m
Deck Length 19.30 m
DECK CAPACITY
Cargo Capacity 40 t
Reefer Sockets 2 on aft deck
Dangerous Goods Loading Designated area on aft deck
TANK CAPACITIES & DISCHARGE RATES
MGO 34.8 mᶟ Discharger rate 30 mᶟ / hour
Fresh Water (Vessel’s + Cargo) 27.3 mᶟ Discharge rate 30 mᶟ / hour
Ballast Water 10.1 m3
DECK EQUIPMENT
Deck Load 2.5 t/ m2
Deck Area 105 m2
Deck Crane Hydraulically-operated, type HLM-10-1SD, SWL 1350 kg @ 6.50 m
SPC-OFF-07-7001-012 EDT Leda Specifications Sheet
Revision 1.0
Issue Date: 25.04.2017
Document Owner: Chartering Manager
Uncontrolled when printed or not viewed as the controlled online version.
PROPULSION & MACHINERY
Main Engines 3 x Caterpillar / C32TTA, Total Power 3132 kW / 3 x 1044 KW
Generators 1 + 1 stand-by, Caterpillar C4.4 TA, 69 kW / 86 kVa
Bow Thrusters 1 x 75 kw
NAVIGATION
Radars 2 x Furuno FAR-2117
Gyro Compass JRC NWZ-4701
Echosounder Alphatron, Alphadepth
Magnetic Compass Ritchie, Navigator HB-71
Chart Plotter Integrated with radar system
Autopilot Alphatron, Seapilot MFC
GPS Compass JRC, JRL-20
ACCOMMODATION
Crew Accommodation 6 bunks
Offshore Personnel 50 offshore personnel on “day-passenger” basis
COMMUNICATION
Primary IOP—Bandwidth 128 mbps
GMDSS As Per GMDSS A1, A2 and A3
